ECOCON SOLID
WALL SYSTEM
The application of ECOCON SOLID WALL provides substantial improvement in quality, safety, and durability of internal and external walls and internal partitions without any cost increment. ECOCON SOLID WALLS are recommended for high-end residential buildings, schools, kindergartens, and other developments where safety, comfort and durability are essential.
FAST, ECOCONOMICAL AND QUALITY REPLACEMENT TO MASONRY BLOCKWORK AND DRY WALLS
Fast erection.
MEP pre-installed.
Absence of "knock-through" sound, increased acoustic proofing.
Extended fire-rating.
4 hours fire-rating for
100 mm wall.
Extended durability.
Reinforced with galvanised steel.
Lightweight. Density of filling material is 400 - 500 kg/m3.
ADVANTAGES
COST SAVINGS
TECHNICAL SPECIFICATIONS
Fire Rating for 100 mm wall, hours..................4
​
Sound Resistance for 200 mm wall, dB.....50
​
Weight per square meter, kg:
100 mm wall...................................................................50
150 mm wall...................................................................70
200 mm wall..................................................................90
​
U-value,
100 mm wall.................................................................0.99
150 mm wall....................................................................0.7
200 mm wall................................................................0.54
​
Saving on MEP installation - 40% less;
​
Saving on blocks wastage - 10% less;
​
Saving on fast accomplishment of work - 50% faster;
​
Saving on foundation and RCC structure due
to low weight - up to 10%;
​
Saving on lintels (lintels are not required);
​
Saving on exact dimensions of door and window
openings - possibility to place order for frames at
day one of construction process.

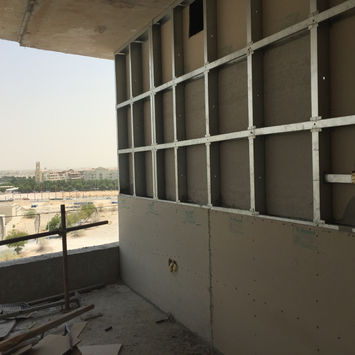

Stage 1
​
LGS Erection and
MEP Installation
Stage 2
​

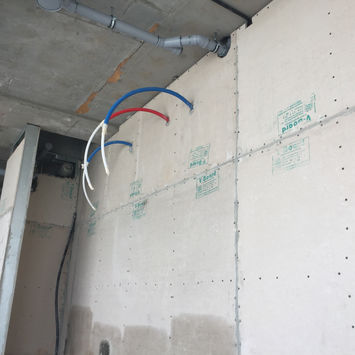

Boards Fixing
Stage 3
​
Walls Filling with Cellular
Concrete
​

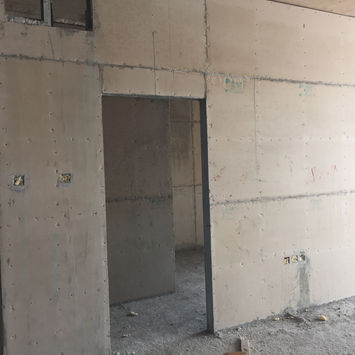

Stage 4
​
Finishing

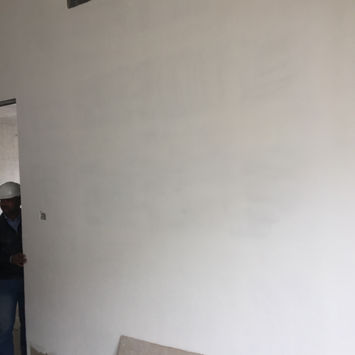

Stage 5
​
Painting (Tiling)
METHOD
GALLERY
